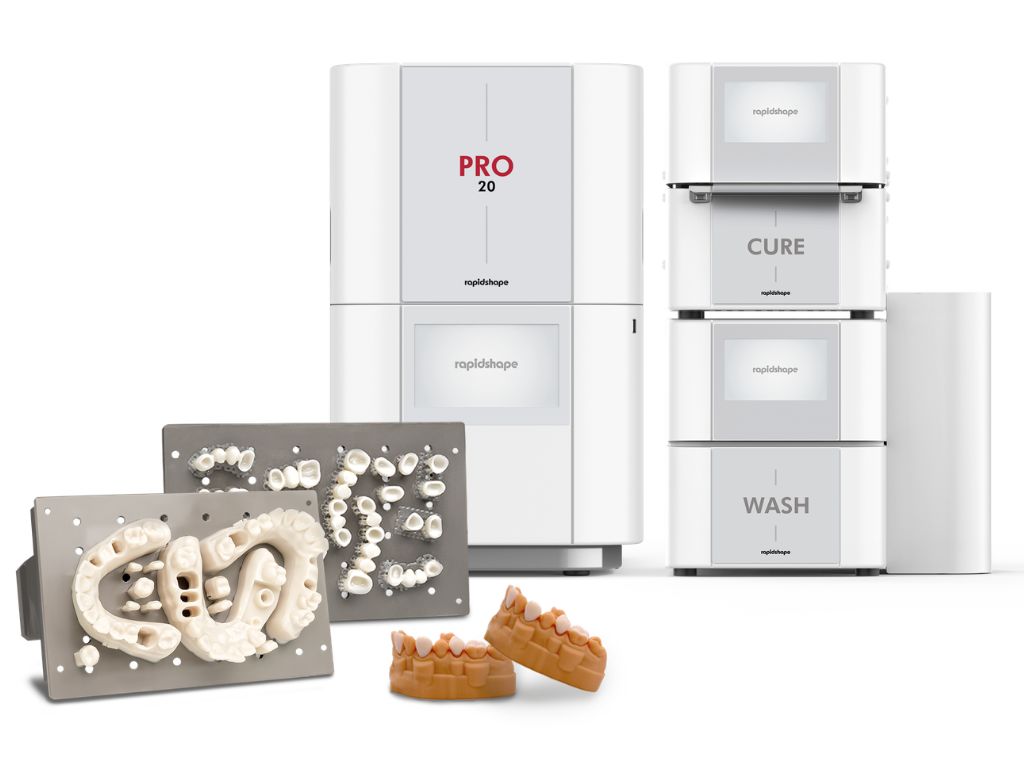

The PRO 20 Dental – Powerful, Reliable, Optimized for Dental 3D Printing

Description

The Rapid Shape PRO 20 delivers unmatched print performance across 15+ dental workflows. Validated with over 200 dental resins, it offers maximum versatility while consistently achieving next-level precision for Crowns & Bridges, Splints, C&B Models, and more, at unbeatable printing speeds.

The PRO 20 high-speed printing is powered by Force Feedback combined with RS Turbo, delivering incredible printing times: aligner models (150 μm layers thickness) in 7 minutes and C&B models (50 μm layer thickness) in 15 minutes, placing it among the fastest DLP printers in the market.

The new RS Crystal Polish reservoir for the PRO 20 achieves an instant high-shine finish. Say goodbye to polishing by implementing the reservoir for your splint prints, making your workflow efficient and incredibly easy to delegate.

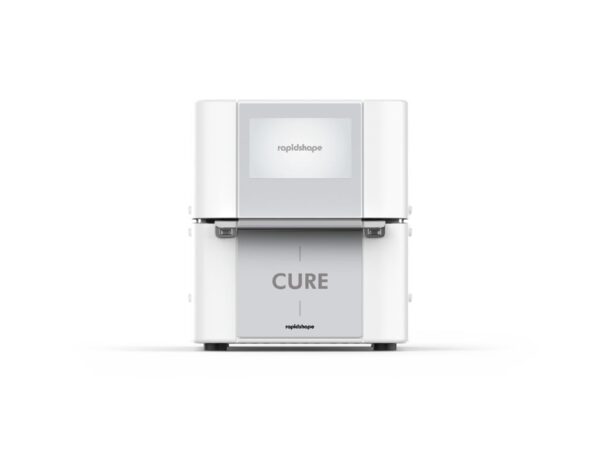

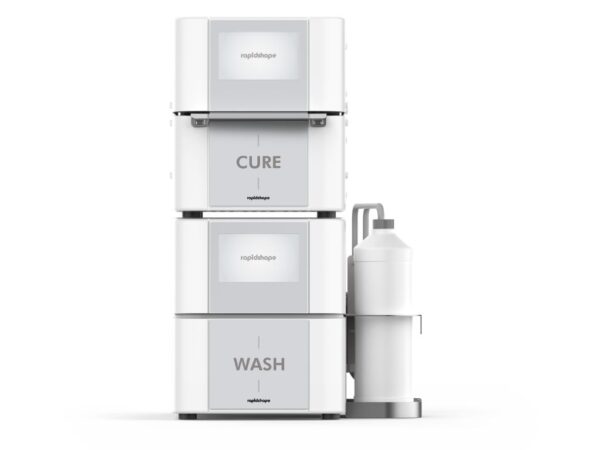

Paired with the WASH and CURE, this fully integrated system with RFID check ensures flawless results and effortless delegation, thanks to seamless connectivity between printer, wash, cure, guaranteeing security and ease of use at every step.

Features:

  • Prints aligner models in 7 minutes
  • 1 Year CARE Plus Plan included with access to 90-day Remote Coach for onboarding, and continued workflow training, as well as full repair coverage and hot swap
  • Durable glass reservoir
  • RFID material identification for peace of mind printing process
  • 200+ validated 3D printing resins & open material system
  • RS Customer portal connection for device monitoring and maintenance
  • Intelligent connectivity with WASH and CURE making delegation easy
  • Compact, lightweight system fits any space
  • Available Accessory: RS Crystal Polish for high-shine in record time

Technical Specifications

  • 385 nm, DLP Technology
  • Build Volume (LxWxH): 133x75x100mm
  • 5.2 x 3 x 4.2 inch
  • Up to 3 C&B Models flat
  • 9 Aligner Model vertical
  • Wavelength: 385nm
  • XY Accuracy: +/- 34 μm
  • Available Layer Thickness: 50-150 μm
  • Chamber heating
  • Durable glass reservoir
  • Connectivity: WiFi, LAN, USB

Device Dimensions

  • (WxDxH) 334 x 357 x 544 mm
  • 13 x 14 x 21.4 inches
  • 26kg
  •  57 lbs

Package Inclusions

  • 3D Printer PRO 20
  • 1x Build Platform
  • Customer Portal Access
  • 1 CARE Plus Plan included
  • Slicing Software Access
  • incl. Regular material and function updates

Printer Accessories & Consumables:

  • 1x resin glass reservoir
  • 1x resin reservoir cover
  • 1x calibration sensor + positioning aid
  • 1x Glass plate to check Z-axis parallelism
  • Tool kit for printer maintenance & repair

Incl. Printing Starter Package:

  • 1x Soft-face hammer
  • 1x Clippers
  • 2x Work Trays
  • 1x Spatula
  • 1x Soft Scraper
  • 1x UV safety goggles
  • 1x USB stick
  • 10x Cleaning cloths

Accessory Package including:

  • Glass resin reservoir
  • RS Crystal Polish Reservoir
  • Accessory Package incl. UV light proof storage for reservoirs, 4x glass resin reservoirs
  • Starter Package
  • D element for Surgical Guide Platform
  • Resin reservoir cover
  • Resin reservoir storage box for storing up to 5 reservoirs
